Rapid prototyping is the backbone of product development, helping engineers, designers, and startups bring ideas to life quickly and efficiently. At BOEN Rapid, we’ve worked with countless clients across North America, Europe, Japan, and Southeast Asia, delivering custom prototypes using methods like CNC machining and vacuum casting. Both are powerful solutions for prototype making and low-volume production, but choosing the right one depends on your project’s specifics—part design, batch size, material needs, and timeline.
So, what’s the difference between CNC machining and vacuum casting? In this guide, we’ll break down the key distinctions, compare their strengths, and help you decide which method suits your next project. Let’s dive in.
Before we explore the differences, here’s a quick snapshot of each process:
CNC Machining: A subtractive manufacturing technique that uses computer-controlled tools (like mills or lathes) to carve parts from solid material blocks—think aluminum, ABS, or PMMA. It’s precise, versatile, and ideal for both prototypes and functional parts.
Vacuum Casting: A process that starts with a master model (often 3D-printed), followed by creating a silicone mold. Liquid resin (e.g., ABS-like or PP-like materials) is poured into the mold under vacuum conditions to produce copies. It’s fast and cost-effective for small batches.
Both methods excel in rapid prototyping, but their applications diverge based on several factors. Let’s unpack the five key differences.

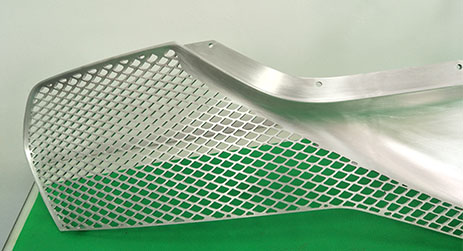

CNC Machining: This is a piece-by-piece process. Each part is individually milled or turned from a solid block using CNC machines. Whether you need one aluminum prototype or ten ABS components, every item is crafted separately, ensuring consistency across the batch.

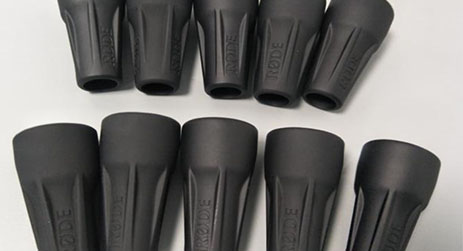

Vacuum Casting: This method relies on replication. First, a master model is made (often via 3D printing or CNC). A silicone mold is then created around the master, and resin is poured into the mold to duplicate parts. Once the mold is ready, producing 8-20 copies is quick and efficient.
Takeaway: CNC machining suits unique, one-off parts, while vacuum casting shines for small-batch replication.
CNC Machining: You get the real deal. If you need an ABS part, it’s machined from an ABS plate. Aluminum parts come from aluminum blocks, and PMMA (acrylic) is genuine PMMA. This makes CNC ideal for functional testing with exact material properties.
Vacuum Casting: Materials are resin-based and mimic real plastics. ABS-like, PP-like, or PMMA-like resins replicate the look and feel of their counterparts but aren’t identical in composition. While versatile, these “types” may not match the mechanical properties of true materials.
Takeaway: Choose CNC for authentic materials; opt for vacuum casting if simulated properties suffice.
CNC Machining: Production time depends on complexity and quantity. Machining each part individually can take longer, especially for intricate designs or larger batches. However, setup is fast—no molds required—so single prototypes can be ready in days.
Vacuum Casting: Once the silicone mold is prepared (typically 1-3 days), copying parts is lightning-fast. A single mold can produce 8-15 parts—or up to 20 with care—in a fraction of the time it takes to machine them individually.
Takeaway: Vacuum casting wins for speed in small batches; CNC is quicker for one-offs.
CNC Machining: Known for its exceptional precision, CNC can achieve tight tolerances (e.g., ±0.01 mm), making it perfect for high-accuracy prototypes or functional components in industries like automotive or medical devices.
Vacuum Casting: Accuracy is solid but lower than CNC. Shrinkage during resin curing can introduce slight variations (typically ±0.1 mm or more), so it’s less suited for parts requiring ultra-precise dimensions.
Takeaway: CNC machining is your go-to for precision; vacuum casting works for less demanding tolerances.
CNC Machining: Parts come off the machine with a smooth finish and can be painted, anodized, or polished immediately. High-temperature processes like oven-baking paint are no issue, thanks to the durability of materials like aluminum or ABS.
Vacuum Casting: Resin parts are more delicate. Painting is possible, but drying must be natural or at low temperatures to avoid damaging the material. This limits some finishing options compared to CNC.
Takeaway: CNC offers more robust finishing; vacuum casting requires gentler handling.
CNC machining is your best bet when:
You need a single prototype or a small run of highly precise parts.
Authentic material properties (e.g., real aluminum or ABS) are critical for testing.
Tight tolerances and complex geometries are non-negotiable.
You want durable parts that can handle aggressive post-processing.
For example, a product development manager validating an aluminum housing for a tech device would lean toward CNC for its accuracy and material fidelity.
Vacuum casting excels when:
You’re producing a small batch (5-20 units) for design validation or market testing.
Speed is a priority, and you’ve got a tight deadline.
Simulated material properties are sufficient (e.g., ABS-like resin for a mock-up).
Cost-efficiency matters more than ultra-high precision.
Imagine a startup needing 15 plastic enclosures for a trade show demo—vacuum casting delivers quickly and affordably.
The decision hinges on your priorities:
Part Complexity: Intricate designs with tight tolerances favor CNC machining.
Order Quantity: Single units lean toward CNC; 5-20 parts tilt toward vacuum casting.
Material Needs: Functional testing calls for CNC; visual prototypes suit vacuum casting.
Timeline: Urgent small batches benefit from vacuum casting’s speed.
At BOEN Rapid, we’ve seen both methods solve real-world challenges. A medical device engineer might use CNC machining for a precise aluminum component, while a startup founder opts for vacuum casting to produce 10 plastic casings for investor pitches. Whatever your needs, a trusted manufacturing partner can guide you to the best solution.
CNC machining and vacuum casting each bring unique strengths to rapid prototyping and low-volume production. By understanding their differences, you can align your choice with your project’s goals—whether it’s precision, speed, or cost savings. For product designers, engineers, and R&D teams, these methods are tools to accelerate innovation without compromise.
