Precision Flanges & Brackets - Custom Manufacturing for Industrial Applications

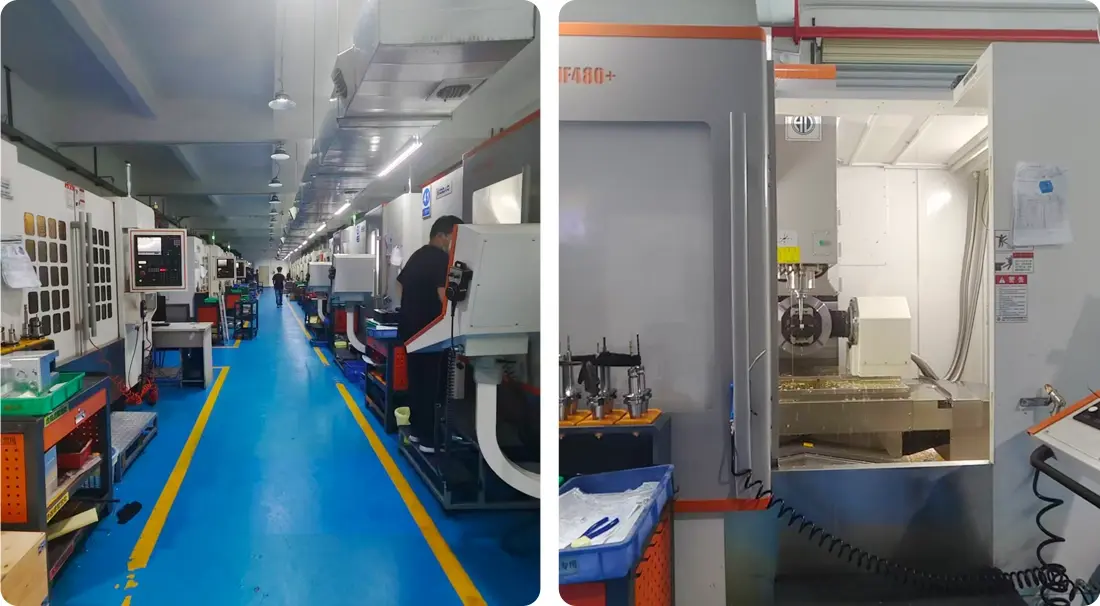

DongGuan Bohao Industrial Co., Ltd., operating under the BOEN Rapid brand, delivers Precision Flanges & Brackets engineered to meet stringent dimensional accuracy requirements in demanding industrial environments. Manufactured using advanced CNC machining and multi-axis milling technologies, these components achieve tolerances as tight as ±0.01mm. With ISO 9001 and ISO 13485 certifications, BOEN Rapid supports vacuum systems, aerospace, semiconductor manufacturing, robotics, and medical device applications. Material options include stainless steel, aluminum alloys, and copper alloys, with customizable surface finishes such as anodizing, polishing, and nickel plating. Prototype delivery typically occurs within 3–15 working days, while low-volume production completes within 2–4 weeks, enabling rapid validation of fit, form, and function.
Engineering Solutions for Critical Applications
The items are key elements in ultra-high vacuum (UHV) systems, robotic assemblies and specialised industrial equipment. They provide firm mechanical connections where dimensional stability has a vital role in system performance.
BOEN Rapid's method of manufacture combines material knowledge and process control. For chemical processing conditions, stainless steel alternatives offer corrosion resistance. Aluminium alloy versions reduce weight for aerospace and robotics applications. Copper alloy choices provide thermal conductivity benefits in heat transfer systems.
All components are dimensionally verified on coordinate measuring machines (CMM). Surface finish analysis indicates that the specifications meet the application requirements. In vacuum applications, the seal integrity is checked by leak testing prior to shipment.
Custom Design and Manufacturing Flexibility
We manufacture to your project's specifications. You supply CAD models, technical drawings or conceptual sketches and we turn specifications into precision parts.
Custom features include non-standard threading patterns, special hole patterns and unique mounting geometries. Our production skills allow for ISO flange standards, CF flange compatibility and customised industrial bracket designs.
DFM analysis detects potential manufacturing issues early in the process. Our engineers will suggest material substitutions, tolerance changes or design revisions that make it easier to manufacture without compromising functional performance.
This co-operative technique minimises the cost of development. It reduces prototype iteration cycles. This guarantees a smooth transition of the final design from prototype to low volume production.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturing Methods | CNC Machining, Precision Turning, Multi-Axis Milling |
| Materials | Stainless Steel, Aluminum Alloys, Copper Alloys, Custom Metals |
| Dimensional Tolerance | ±0.01mm (customizable) |
| Surface Finishes | Polishing, Sandblasting, Anodizing, Nickel/Chrome Plating |
| Sizes & Standards | Custom dimensions; CF flanges, ISO flanges, bespoke brackets |
| Industries Served | Vacuum Systems, Aerospace, Semiconductor, Robotics, Medical Devices, Industrial Automation |
Quality Assurance and Functional Validation
Quality management systems certified to ISO 9001 and ISO 13485 govern every production stage of Precision Flanges & Brackets. Documented inspection procedures track dimensional accuracy throughout machining operations.
Dimensional verification is just one of the functional validation services for mission-critical applications. Leak testing is used to verify the vacuum integrity of UHV flange assemblies. Pressure testing verifies the performance of the structure under defined operating circumstances.
Sub-system assembly services offer you pre-assembled bracket configurations ready for integration. This cuts your assembly time and provides quality assurance before parts get to your plant.
Material certificates specify the composition of the alloy and its mechanical properties. The inspection reports include measurement data of essential dimensions. These documents help your quality traceability requirements and regulatory compliance demands.
FAQ
Q: What industries use precision flanges and brackets?
A: Our flanges and brackets are widely used in vacuum systems, robotics, semiconductor manufacturing, aerospace, medical devices, and industrial automation. They are useful for prototype and small volume production.
Q: How do you keep dimensional tolerances?
A: BOEN Rapid use advanced CNC machining, precision measuring instruments and quality control methods to achieve tolerances as fine as ±0.01mm to ensure flawless alignment and fit for assembly.
Q: Can flanges and brackets be customized?
A: Yes. Custom designs are also available to your particular project specifications including unusual dimensions, threading, surface treatments and hole patterns.
Q: Do you do leak testing or functional validation?
A: For sure. We can supply leak tested parts for vacuum or critical applications, and also assemble sub-systems for functional verification.
Q: What are the materials & finishes?
A: Components are available in stainless steel, aluminium alloys, copper alloys and other bespoke metals. Finishes are optional (polished, anodised, sand blasted or nickel/chrome plated).
Partner With BOEN Rapid for Your Next Project
Contact us at contact@boenrapid.com to discuss your Precision Flanges & Brackets requirements and receive project evaluation within 24 hours.
