5-axis CNC machining is an advanced manufacturing process that controls a cutting tool across five simultaneous axes — the linear X, Y, and Z axes plus two rotational axes (typically A and B, or A and C). This configuration allows the tool to approach a workpiece from virtually any angle without manual repositioning. The result is complex 5-axis machining parts produced in a single continuous setup, with tolerances reaching ±0.005mm. Industries demanding the highest geometric accuracy — aerospace, medical implants, and defense — rely on this technology as a production standard, not an option.

Understanding 5-Axis CNC Machining

How the Five Axes Work Together?

Three straight axes allow moving in a straight line along the X, Y, and Z planes. The two axes of rotation—A, which goes around X, and B, which goes around Y, or C, which goes around Z—let the spindle or table tilt and turn. As long as all five move at the same time, the cutting tool stays in the best possible touch with curved surfaces, deep holes, and complex angles that would normally need to be cut in more than one step. The International Journal of Machine Tools and Manufacture (2021) says that simultaneous 5-axis interpolation cuts down on geometric errors by as much as 47% compared to indexed 3+2 methods.

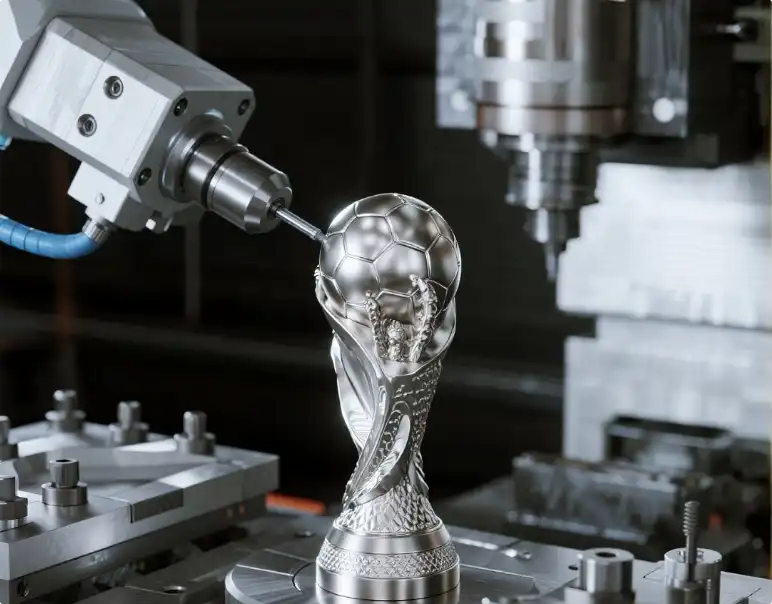

5-axis CNC machine cutting complex metal workpiece with simultaneous multi-axis motion

CNC Programming and Simulation

Modern 5-Axis machining needs CAM software, like Mastercam or Siemens NX, to make sure that tool lines don't collide with surfaces that aren't flat. Before the spindle turns, simulation tools check every action to make sure there is no confusion between the tool, holder, and fixture. When cutting titanium Gr5 or 17-4PH stainless steel, where scrap costs are high and material tracking rules are strict, this pre-production proof step has to be done.

Benefits and Applications of 5-Axis Machining Parts

Multi-axis cutting of 5-Axis machining parts is most useful because it gets rid of the need for multiple sets, built-up misalignment, and the geometric trade-offs that 3-axis equipment can't avoid. Here are the practical benefits that have a direct effect on choices about what to buy:

Single-setup accuracy: The workpiece stays fixed during the whole process, so there is no chance of repositioning error. Engineering data from BOEN Rapid shows that dimensional accuracy is 30–50% better than with multi-setup 3-axis workflows.
Superior surface quality: The best tool angles keep chip loads the same across curved surfaces, giving Ra 0.4µm finishes that often don't need secondary polishing, which saves a lot of money on expensive parts.
Complex geometry capability: Turbine blades, orthopedic implant stems, impellers, and structural airframe brackets all have features that can't be reached with regular toolpaths. This can be fixed with simultaneous 5-Axis movement without affecting the design in any way.
Compressed lead times: Combining several processes into a single setup cuts the total time needed for machining by a large amount. Projects that used to take 5–7 production days now only take 2–3 days to finish while still meeting the same quality standards.

These benefits lead to measurable results in the supply chain. Teams in charge of buying things for high-value, low-volume projects, like those in aerospace and medical device development, can get faster FAI cycles, tighter tolerance conformance, and accurate paperwork that helps with regulatory applications.

There are many ways to use it. Extreme temperature and mechanical stress cycles can't break down aerospace structure parts. Biocompatible surface finishes and micron-level accuracy are needed for surgical instruments and orthopedic implants. Robotic end-effectors and joint systems are made easier to put together because there are fewer parts and more physical freedom. When going from a concept to production, automotive performance tools need to be accurate every time.

Assorted finished 5-axis CNC machined components for aerospace, medical and robotics applications

5-Axis vs. 3-Axis Machining: Making the Right Choice

3-axis machining is still a good way to make polygonal parts, flat shapes, and parts with easy-to-reach features quickly and cheaply. The trade-offs become very different when part shape includes undercuts, compound angles, or deep internal channels. Every extra setup on 3-axis equipment adds a chance of an alignment error, and for parts with tight tolerances, those errors get bigger.

5-Axis machining costs more in terms of equipment and programming, but it saves money in the long run because it reduces scrap, cuts down on secondary operations, and speeds up cycle times. When purchasing teams look at the total cost of ownership instead of just the unit price, 5-Axis processing makes a lot of sense. This is especially true for parts that are valued for their complexity rather than their volume.

The choice framework is simple: 5-Axis is the right process if your part needs features on more than two planes, has tolerances tighter than ±0.02mm, or needs a record of a single-setup inspection that can be tracked.

Engineer reviewing CAM simulation and 3D model to select optimal 5-axis machining strategy

Design Tips and Production Process for 5-Axis Machining Parts

Design for Manufacturability Principles

Effective DFM for 5-Axis machining parts focuses on a few key areas: consistent wall thickness to avoid vibrations during deep-cavity passes; tool access angles that keep holders from interfering with undercut features; and tolerance allocation that is based on actual functional needs instead of standard drawing practice. Tolerances that are too tight on surfaces that aren't important increase costs without improving efficiency.

The Production Sequence

At BOEN Rapid, the manufacturing process is organized into steps: CAD review and DFM analysis; material verification and batch certification; CAM programming and simulation validation; machine setup and calibration; machining; CMM dimensional inspection; surface finish analysis; and delivery of the documentation package. Each step creates a record that can be tracked, supporting the full document chain that medical and aerospace procurement teams need to qualify suppliers and make sure they follow the rules.

Managing Tool Deflection and Vibration

Titanium metals, especially Ti-6Al-4V (Grade 5), have some unique problems. They don't conduct heat well, are strong for their weight, and tend to thicken over time. To work with these qualities, you need the right tool shape, the right cutting speed, and rigid fixturing. The engineers at BOEN Rapid use these parameters as a standard procedure on all materials that are hard to work with, like 17-4PH stainless steel and PEEK structural parts.

Engineering team conducting DFM review and production process planning for 5-axis machined parts

How to Choose the Best 5-Axis Machining Parts Supplier?

When buying things for aircraft and medicine, qualifying suppliers is a structured process, not a look through a catalog. Quality engineers with a lot of experience look at things like current ISO 9001 and ISO 13485 certifications with audit records that can be found, documented CMM inspection skills, the ability to track materials from the mill certificate to the finished part, NDA handling and export compliance protocols, and FAI (First Article Inspection) experience with documented dimensional reports.

BOEN Rapid helps with the whole approval process, including executing the NDA, documenting the system audit, doing the technical review, putting together the FAI package, and moving to the production framework. All of this can be done in the 3–6 months that are usually needed for high-value component projects. Our 5-Axis machining parts supplier can work with aluminum alloys (6061 and 7075), titanium (Grade 2 and Grade 5), stainless steel (304, 316, and 17-4PH), and engineering plastics (PEEK, POM, and Nylon). We can make anything from a single prototype to 10,000 units.

Before moving on to technical review, procurement professionals should ask for material certificates, inspection reports from past programs, and references from clients in similar industries.

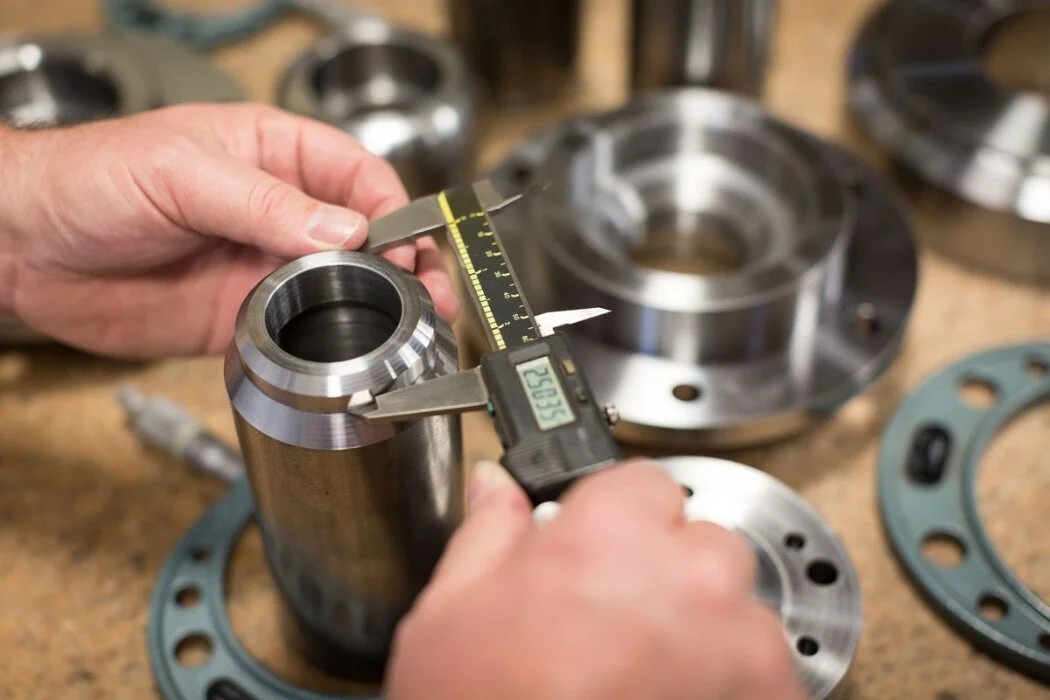

Quality inspector measuring 5-axis machined part with precision caliper for dimensional verification

Conclusion

5-Axis machining parts meet the geometric and dimensional needs of the toughest industrial projects in defense, medical devices, and aircraft. Single-setup processing, the ability to work with tight tolerances, and full documentation traceability are not extras; they are basic requirements for suppliers to meet in these fields. BOEN Rapid has been making precision parts for 15 years, is certified by ISO 9001 and ISO 13485, and offers integrated engineering support. This makes us a good long-term partner for complex component programs from prototype to production.

FAQ

What materials are best suited for 5-axis CNC machining?

Most of the time, industrial plastics like PEEK, 17-4PH stainless steel, or titanium alloys (Grade 5 Ti-6Al-4V) are used. The choice of material is based on how it will be used, how it will be affected by the climate, and government rules. For example, ASTM F136 is used for medical implants, and AMS 4928 is used for aircraft titanium.

How precise can 5-axis machining be?

Under controlled conditions, with the right fixtures and a calibrated CMM, the tolerance can reach ±0.005mm. The factory floor at BOEN Rapid is used for both medical and aerospace projects, and this level of accuracy is normal.

Can small-batch or prototype orders be accommodated?

Yes, BOEN Rapid can handle samples of one unit all the way up to production runs of 10,000 units. Depending on how complicated it is, prototype shipping is usually done in 3–15 working days.

How is material traceability maintained?

Each batch has a mill certificate that is linked to the record of the finished part inspection. This chain of custody makes sure that there are no breaks between seller qualification checks and regulatory submissions.

What certifications should I verify before qualifying a supplier?

These are the standards: ISO 9001 for quality management and ISO 13485 for medical devices. Ask for up-to-date certificates, audit notes from the last few months, and CMM inspection results from programs that are similar.
