The aerospace industry, characterized by its rigorous demands for precision, performance, and safety, operates on long development cycles. However, a transformative approach is significantly accelerating innovation within this sector: rapid prototyping. This methodology allows engineers to quickly move from digital designs to physical models, enabling iterative testing and refinement before committing to costly full-scale production. Rapid prototyping is an indispensable tool in the aerospace industry, drastically shortening design cycles, reducing development costs, and enabling the creation of lighter, more optimized, and safer components for aircraft, spacecraft, and other aerial vehicles. This article will explore what rapid prototyping entails in an aerospace context, delve into its diverse applications, examine the compelling advantages it offers, address the challenges it faces, discuss the materials and technologies utilized, and look towards its promising future in shaping the next generation of aerospace products.

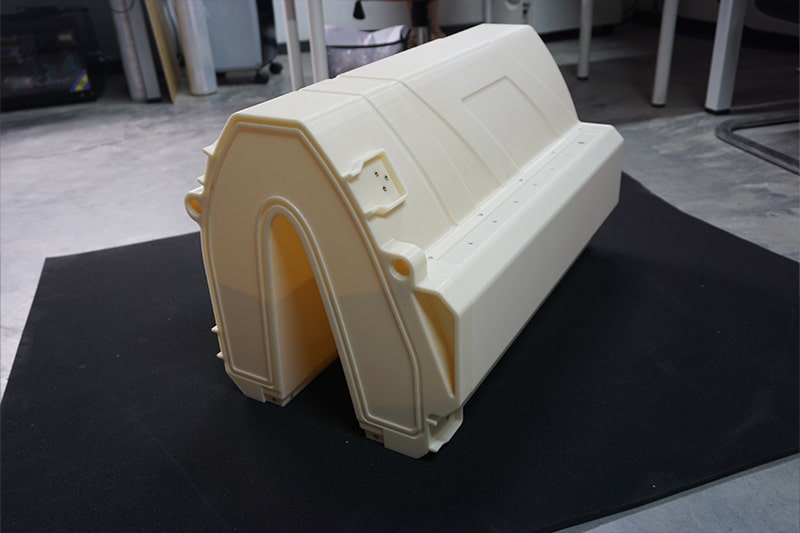

What is Rapid Prototyping in the Aerospace Industry?
Rapid prototyping in the aerospace industry is a collection of advanced techniques, predominantly additive manufacturing (3D printing) and precision CNC machining, used to quickly create physical models, components, or assemblies directly from digital designs. Its primary goal is to accelerate the product development lifecycle, allowing for rapid iteration, testing, and validation of aerospace concepts before costly full-scale production.
This systematic approach integrates cutting-edge technologies with traditional engineering methods to speed up the development cycle of aerospace components. Unlike conventional manufacturing which often requires extensive tooling and long lead times for prototypes, rapid prototyping facilitates swift conversion from conceptual designs to tangible models. This capability is crucial for an industry where design flaws can have significant safety and financial consequences, enabling early identification and correction of issues.
How Is Rapid Prototyping Utilized in Aerospace?
Rapid prototyping is extensively utilized in aerospace for diverse applications, including quick design iteration and visualization, functional testing of components, creating specialized tooling and fixtures, developing lightweight structural parts, and producing on-demand spare parts for maintenance. These applications span from the initial conceptual phase through to supporting maintenance, repair, and overhaul (MRO) operations.
Its role is expanding beyond mere visualization to the creation of functional, testable components that can withstand aerospace conditions.
Design Iteration and Concept Visualization:
Engineers can quickly produce multiple physical iterations of a component or assembly to test different design concepts, optimize aerodynamics, or evaluate ergonomics.
This allows stakeholders to physically interact with prototypes, improving collaboration and ensuring design alignment before committing to costly manufacturing.
Functional Testing and Performance Evaluation:
Prototypes are subjected to rigorous testing under simulated aerospace conditions (e.g., heat, vibration, pressure) to assess thermal resistance, strength-to-weight ratios, fluid dynamics, and overall performance.
This "fail-fast, learn-fast" approach helps validate designs and materials, leading to improved performance and cost savings in the long run.
Tooling, Jigs, and Fixtures:
Customized tooling, jigs, and fixtures used in assembly, manufacturing, and maintenance can be rapidly produced, often with complex geometries, to streamline production processes and improve precision on the factory floor.
Lightweight Structural and Non-Structural Components:
Rapid prototyping techniques, especially certain 3D printing methods, enable the creation of lightweight yet structurally sound parts, such as brackets, ducts, and fairings.
These lighter components contribute directly to fuel efficiency for aircraft and increased payload capacity for spacecraft.
On-Demand Spare Parts (MRO):
For aging aircraft platforms or remote missions, rapid prototyping allows for the low-volume, on-demand production of replacement parts that might be obsolete or have long lead times if sourced conventionally. This reduces inventory holding costs and minimizes aircraft downtime.
Wind Tunnel Models and Aerodynamic Testing:
Precision models for wind tunnel testing can be rapidly fabricated, allowing engineers to quickly evaluate aerodynamic performance and refine designs.
Cabin Interior Components:
Custom components like seat frames, overhead bin parts, and air circulation ducts can be prototyped and optimized for weight, safety, and passenger comfort, often meeting specific flame, smoke, and toxicity (FST) requirements.
What Are the Key Advantages of Rapid Prototyping for Aerospace?
Rapid prototyping offers significant advantages for the aerospace industry, including vastly accelerated product development cycles, substantial cost reductions by identifying flaws early, the ability to create highly complex and optimized designs, and a reduction in material waste. These benefits directly address the industry's need for innovation, efficiency, and stringent safety standards.
Here's a detailed look at its core advantages:
Accelerated Product Development:
The primary benefit is a dramatically shortened design-to-production timeline. Engineers can quickly move from CAD models to physical parts, enabling faster iteration and validation.
This rapid turnaround allows aerospace companies to bring new designs and technologies to market faster, gaining a competitive edge.
Cost Efficiency and Risk Reduction:
By identifying and correcting design flaws early in the development phase, rapid prototyping avoids costly re-tooling, extensive rework, and significant scrap material that would arise in later production stages.
It helps mitigate risks associated with new designs and materials by allowing for thorough testing before full-scale manufacturing investment.
Enhanced Design Freedom and Complexity:
Additive manufacturing, a key rapid prototyping technology, enables the creation of highly intricate geometries, internal lattice structures, and consolidated parts impossible with traditional subtractive methods.
This leads to topologically optimized designs that are stronger, lighter, and more efficient.
Improved Performance and Safety:
Faster and more extensive testing of various design options and material combinations allows engineers to optimize products for performance, efficiency, and ultimately, increased safety margins.
Physical prototypes provide a tangible means to evaluate functionality and identify potential issues that might not be apparent in digital simulations alone.
Reduced Material Waste:
Additive manufacturing processes build parts layer by layer, adding material only where it is needed. This contrasts with traditional machining which generates significant material waste, especially critical when using expensive aerospace-grade alloys.
Customization and Flexibility:
Rapid prototyping facilitates the quick creation of customized components tailored to specific aircraft platforms, mission requirements, or customer needs, enhancing flexibility in design and production.
Better Communication and Collaboration:
Physical prototypes serve as tangible communication tools, bridging the gap between designers, engineers, manufacturers, and clients. This improves cross-functional understanding and decision-making.
What Challenges Does Rapid Prototyping Face in Aerospace?
Despite its transformative benefits, rapid prototyping in aerospace faces significant challenges related to strict regulatory compliance and certification, achieving consistent material properties, limited build sizes for very large components, and the high cost of specialized materials and equipment. Overcoming these hurdles is essential for the widespread adoption of prototypes in flight-critical applications.
These challenges necessitate ongoing research, development, and standardization within the industry:
Rigorous Certification and Qualification:
The aerospace industry has exceptionally stringent safety and performance regulations. Gaining certification for parts made via rapid prototyping, especially for flight-critical applications, is a lengthy, expensive, and data-intensive process due to the relatively newness of these manufacturing methods and variability.
Material Property Consistency and Anisotropy:
Ensuring consistent mechanical properties (e.g., strength, fatigue life) and metallurgical integrity in 3D-printed metal parts is challenging due to the layer-by-layer build process, which can introduce anisotropy (properties differing in different directions).
Internal defects like porosity or residual stresses must be meticulously managed and verified.
Limited Build Envelopes:
While rapid prototyping technologies are advancing, industrial-scale machines still have limitations on the maximum dimensions of parts they can produce in a single build, particularly for high-performance metal components. Very large structures may still require traditional manufacturing or assembly of smaller 3D-printed sections.
High Equipment and Material Costs:
Industrial-grade rapid prototyping machines (especially for metal additive manufacturing) require significant capital investment.
The specialized, high-performance aerospace-grade powders and resins used are also considerably more expensive than traditional raw materials.
Post-Processing Requirements:
Many rapid prototypes, particularly metal ones, require extensive post-processing steps (e.g., heat treatment, support removal, surface finishing, machining) to achieve final dimensional accuracy, surface quality, and desired mechanical properties. These steps add to the cost and lead time.
Data Integrity and IP Protection:
The reliance on digital models for rapid prototyping raises concerns about data security, intellectual property protection, and ensuring design integrity throughout the prototyping and production chain.
Lack of Standardized Processes:
While standards are emerging, the rapid evolution of rapid prototyping technologies means there's still a need for more widely accepted and robust industry standards for process control, material characterization, and quality assurance, which can slow adoption.
What Technologies and Materials Are Used for Aerospace Rapid Prototyping?
Aerospace rapid prototyping leverages a range of advanced manufacturing technologies, predominantly additive manufacturing (3D printing) processes like Selective Laser Sintering (SLS), Stereolithography (SLA), and various metal 3D printing methods, along with high-precision CNC machining. These technologies process specialized aerospace-grade polymers, composites, and metal alloys chosen for their performance in extreme conditions.
The choice of technology and material depends heavily on the specific application, required precision, part size, and desired mechanical properties of the prototype.
Key Rapid Prototyping Technologies:

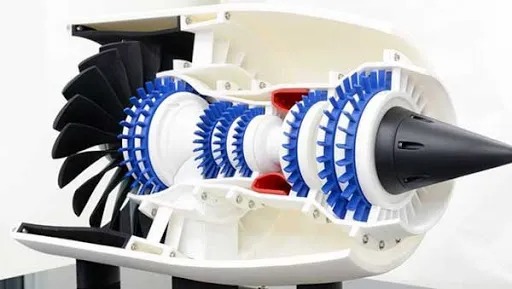

Additive Manufacturing (3D Printing):
Selective Laser Sintering (SLS): Uses a laser to sinter powdered polymers (e.g., Nylon, PEEK) layer by layer. Excellent for strong, functional prototypes with good mechanical properties and design freedom.
Stereolithography (SLA): Employs a UV laser to cure liquid photopolymer resin layer by layer. Known for high precision, smooth surface finishes, and intricate details, ideal for aesthetic models and complex geometries.
Fused Deposition Modeling (FDM): Extrudes heated thermoplastic filament layer by layer. Cost-effective for larger, less complex functional prototypes and tooling, using materials like ABS, PC, or ULTEM.
Metal Additive Manufacturing (e.g., SLM/DMLS, EBM, DED):
Selective Laser Melting (SLM) / Direct Metal Laser Sintering (DMLS): Uses a laser to fully melt and fuse metal powder layer by layer. Produces high-density, strong metal parts.
Electron Beam Melting (EBM): Uses an electron beam to melt metal powder in a vacuum. Ideal for high-temperature alloys like titanium and nickel-based superalloys.
Directed Energy Deposition (DED): Melts wire or powder as it's deposited by a laser or electron beam. Suitable for large parts, repairs, and adding material to existing components.
Subtractive Manufacturing:
CNC Machining: Computer Numerical Control machining uses automated cutting tools to remove material from a solid block (billet) of plastic or metal. Offers high precision, excellent surface finish, and can process a wide range of engineering-grade materials, crucial for functional prototypes that mimic final production parts.
Other Rapid Prototyping Methods:
Vacuum Casting: Creates high-quality prototypes or small batches from silicone molds using polyurethane resins. Good for aesthetic prototypes and short production runs.
Sheet Metal Fabrication: Used for prototypes of sheet metal components, leveraging processes like laser cutting, bending, and forming.
Common Aerospace Rapid Prototyping Materials:
High-Performance Polymers:
ULTEM™ (PEI - Polyetherimide): High strength-to-weight ratio, excellent FST (flame, smoke, toxicity) properties, high heat deflection. Used for cabin components, ducting, and tooling.
PEEK (Polyether Ether Ketone): Outstanding strength, stiffness, chemical resistance, and high-temperature performance. Used for demanding structural components, brackets.
Nylon (PA): Good balance of strength, flexibility, and chemical resistance. Often reinforced with carbon or glass fibers for increased stiffness. Used for jigs, fixtures, and non-critical parts.
Metal Alloys:
Titanium Alloys (e.g., Ti-6Al-4V): Exceptional strength-to-weight ratio, superior corrosion resistance, high temperature capabilities. Critical for structural components, engine parts.
Nickel-based Superalloys (e.g., Inconel 718, Hastelloy): Unparalleled high-temperature strength, creep resistance, and oxidation resistance. Essential for jet engine hot section components.
Aluminum Alloys (e.g., AlSi10Mg, Scandium-modified alloys): Lightweight with good mechanical properties. Used for brackets, housings, and heat exchangers.
What Does the Future Hold for Rapid Prototyping in Aerospace?
The future of rapid prototyping in aerospace promises greater integration with artificial intelligence for design optimization, advancements in multi-material and large-scale printing, and the continued maturation of certification standards, leading to more robust, efficient, and innovative flight-ready components. This evolution will further blur the lines between prototyping and end-use manufacturing.
Several key trends and innovations are shaping this future:
Greater Integration of AI and Generative Design:
AI-powered generative design tools will increasingly create highly optimized, complex geometries that maximize performance while minimizing weight, pushing the boundaries of what's possible in aerospace design.
Machine learning will refine process parameters for greater consistency and predictability in rapid prototyping.
Advancements in Multi-Material and Hybrid Printing:
The ability to print parts with a combination of different materials or integrate electronics directly into printed structures will enable higher levels of functional integration and system consolidation.
Hybrid manufacturing combining additive and subtractive processes will optimize for both geometric complexity and surface finish/tolerance.
Larger Build Volumes and Faster Processes:
Development of larger industrial 3D printers and higher-speed rapid prototyping technologies will allow for the fabrication of even bigger and more complex aerospace components in a single build, reducing the need for assembly.
Enhanced Process Monitoring and Quality Assurance:
Real-time in-situ monitoring and advanced sensing technologies will improve the quality control of rapid prototyping processes, providing greater confidence in the integrity and repeatability of printed parts.
This will contribute to faster and more confident certification for critical applications.
Maturation of Certification and Standards:
As more flight data is gathered and as industry bodies continue to develop and refine standards for additive manufacturing in aerospace, the certification pathway for flight-critical 3D-printed parts will become more established and efficient.
In-Space Manufacturing and On-Demand Logistics:
The ability to rapidly prototype and manufacture spare parts or custom tools directly in orbit or on distant celestial bodies using in-situ resources will be transformative for long-duration space missions and lunar/Mars bases.
Sustainable Practices:
Focus on more sustainable materials and energy-efficient rapid prototyping processes will align with the aerospace industry's growing environmental commitments.
Conclusion
Rapid prototyping has transcended its origins as a mere tool for quick models to become an indispensable force in the aerospace industry. It is undeniably crucial for accelerating innovation, significantly reducing development costs, and enabling the creation of lighter, stronger, and more efficient aerospace components that directly impact performance and safety. By facilitating rapid iteration and early validation, it minimizes risk and maximizes the potential for groundbreaking designs.
Despite challenges related to stringent regulatory requirements and the complexities of material qualification, the relentless pace of technological advancement in rapid prototyping is steadily broadening its application. As the industry continues to push the boundaries of flight and space exploration, rapid prototyping will remain at the forefront, driving efficiency, fostering innovation, and helping to build the next generation of aerial vehicles and spacecraft.
