Modern manufacturing requires excellent milling and turning skills to promote innovation and creativity. To invest in rapid prototyping, you must understand the difference between the manufacturing processes. This article is the CNC turning vs. Milling: comprehensive guide article to help you attain quality results.
CNC machining defines a complex procedure for producing digital 3D drawings on metal or plastic pieces. Manufacturers use these methods to create prototypes and parts in diverse industries with adaptable tech. Overall, it saves costs and attains quality.
It features a similar process involving converting the desired design into instructions and instructing the CNC mill machine to cut the object. In any case, the hardware for cutting the material may vary based on the hardware.

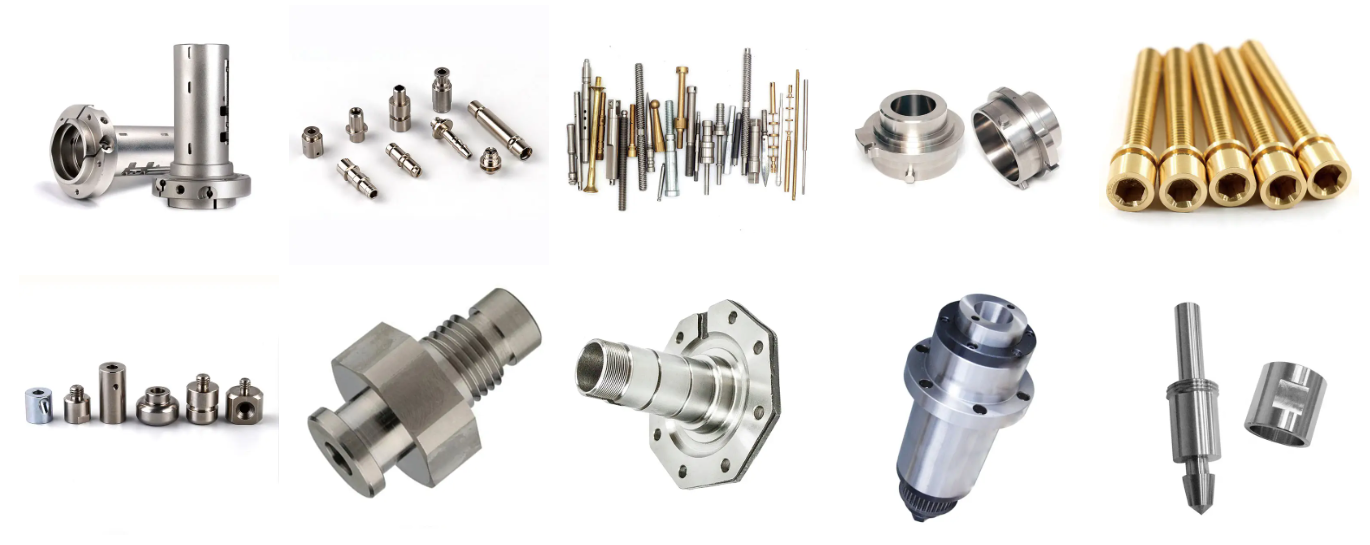

CNC turning is a machining form for crafting conical, cylindrical, and rounded parts. It is a convenient rapid prototyping and CNC machining option but less versatile than milling. Machinists use CNC turning centers and lathes to complete CNC turning, which features an affixed turret cutting tool and delivers precise results.
Overall, the cutting tool removes materials under computer instructions. A CNC lathe can bore through molds to form machined tubes. Besides, the milling machine turret has multiple cutting tools to ensure efficiency and save time in large-scale projects.
The CNC lathe mill machine features critical components such as tailstock, headstock, carriage, tool holder, and chuck. It can craft turbine blades for energy use, and the nozzles can help produce conical and cylindrical parts. Besides, it has flanges for strengthening pipes & beams and shafts with rounded profiles.
The bolts and nuts cater to tolerance and ensure accurate results, while the ball joints suit rounded connective devices. Above all, fabricated rollers in CNC lathes feature tight production tolerances for diverse industrial uses. Standard processes in CNC turning include grooving, facing, taper cutting, and straight cutting.
CNC Turning excels in creating round parts. It can achieve perfect roundness compared to CNC machining procedures like routing and milling. In addition, this CNC option is highly accurate and can achieve precise dimensions in intricate designs for valuable techs. It delivers impressive results with CNC milling for asymmetrical parts.
The CNC milling machine is a popular machining option for producing diverse parts. Numerous companies utilize milling to produce one-off functional prototypes. The CNC milling machine complies with computer instructions for rotating the cutting tool along the axes. It removes material perfectly to ensure excellent results.
The production process involves passing the cutting tool across the surface to attain the required shape. Meanwhile, multi-axis milling rotates on the workpiece to achieve perfect cutting angles. This approach enables the mechanisms to produce more intricate parts with minimal or no manual work.
CNC milling components include the spindle, base, worktable, and control panel. Overall, fittings connect parts, while the housing protects the electrical devices and internal components. It features milled brackets containing custom holes and threads to complete complex projects. Besides, the mechanical device features a spiral gear.
Forming punches helps CNC mills craft products like sheet metal. Water pumps create reliable hydraulic impellers while the engine part runs the hardware. Above all, mold tooling enables complete rapid prototyping. Standard processes in CNC milling include form, angular, and face milling.
CNC milling has several benefits for prototype companies and manufacturers. It features a versatile mill machine that can create diverse shapes and designs. Yet, it uses various cutting tools to fit diverse operations, like end-milling and roughing. The CNC mills can serve diverse settings, including post-machining.
For instance, they can help add intricate details to 3D-printed, molded, or turned parts. The process is inexpensive, repeatable, and fast since it requires less tooling. Thus, it is a typical production process for rapid prototyping projects.
Understanding CNC turning vs. Milling: comprehensive guide implies mastering cost considerations, production volume, material sustainability, shape capabilities, and process comparison. You must determine when to use each option.
The CNC milling process removes material from a stationary object by rotating its cutting tools. In general, manufacturers use this process to create components that aren't cylindrical. The primary function of CNC milling is to CNC milling machine flat surfaces unevenly. Thus, it suits secondary finishing settings for design features.
On the other hand, CNC turning works by rotating its cutting tool to remove extra material it contacts. Machinists utilize this process to complete projects that need round shapes. It offers broad material compatibility and high-speed rotation for large-scale art production like tubes.
CNC milling and turning feature different production processes for removing material in machining. Overall, a stationery cutting tool in CNC turning helps to remove material in cylindrical parts. On the other hand, CNC milling rotates the cutting tool across the stationary object to attain complex & cylindrical parts.
In any case, the two processes use computer instructions to attain repeatability and precision. Milling provides versatility to craft complex shapes while turning suits simple geometries for speed. The choice for CNC turning and milling depends on the material choice, complexity, and product shape.
CNC turning cutting occurs as the object rotates the cutting tool's axis. Hence, it removes the outer and bumpy surface through a continuous cutting motion to attain cylindrical shapes. Meanwhile, the CNC milling process rotates the cutting tool along the stationary object's axis. Thus, it suits non-cylindrical objects & intricate designs.
The CNC milling machine provides flexibility for shaping intricate shapes like symmetrical parts, tubes, and shafts. Therefore, it can craft complex geometries such as cavities, slots, angled surfaces, and non-cylindrical shapes. Its versatility suits intricate features and precise contours, allowing it to produce complex forms.
In the meantime, CNC turns suits into conical and cylindrical shapes like tubes and shafts. It could be more precise and more suitable for multi-faceted and symmetrical parts requiring you to understand the CNC turning vs. Milling: comprehensive guide.
CNC milling and turning are compatible with various materials, such as ABS, polycarbonate, acrylic, titanium, steel, and aluminum. CNC milling suits versatile projects for complex, uneven, and flat surfaces. Meanwhile, CNC turning works best with rotational symmetry. Softer materials demand slower speeds than harder ones.
CNC milling is used for low-volume custom manufacturing and rapid prototyping and is suited to unique and complex parts. On the other hand, CNC turning is faster for large-scale projects, using its high-speed cutting rotational process. The production speed and volume vary based on the design's complexity.
The CNC milling machine suits high-volume projects since it is fast and material-sustainable for cost-effective cylindrical parts. Therefore, it suits products with lower initial costs and less complex designs. Meanwhile, CNC milling is more expensive than CNC turning since it features multi-axis movements and specialized tools.
CNC machining techniques such as multi-axis use more than three standard axes to complete their functions. The tech enables the production of complex geometries without repositioning the object. It has an additional rotational axis with 5-axis and 4-axis CNC machines. Hence, it attains intricate designs and improves accuracy.
The machining process can reduce multiple operations through a single setup. Also, the setup creates complex designs, increases efficiency, and reduces human error. Examples of complex parts include high-precision auto components, intricate implants, and aerospace applications. Overall, it allows flexible undercuts.
CNC milling and turning are suitable for diverse materials such as polycarbonate, brass, ABS, titanium, nylon, aluminum, plastic, and steel. Softer materials are cut at lower speeds, while harder ones require specialized techniques and tools. Composites, ceramics, and wood can also be suitable for CNC machines.
CNC processes reduce human error through automatic processes using programmed computer instructions. They produce highly accurate parts as soon as you input the design. Thus, they reduce mistakes in manual tasks like cutting angles and positioning tools. The tools also enable repeatability to meet strict specifications.
This machining innovation provides precise tolerances, ranging from ±0.001 to ±0.005 inches (±0.025 to ±0.127 mm) based on the setting, material, and mill machine. CNC milling is less exact but attains accurate complex designs. On the other hand, turning suits high-level roundness for cylindrical features. The tolerance level is critical to understanding the CNC turning vs. Milling: comprehensive guide.
The choice between CNC milling and turning varies based on the requirements, complexity, and shape. CNC turning provides efficient production for symmetry, conical, and cylindrical parts. Meanwhile, CNC milling suits secondary finishing and offers flexibility for parts like grooves and cavities.
CNC milling and turning uses advanced software for controlling and programming projects. In other words, it uses programs such as Mastercam, Fusion 360, and G-code to generate precise cutting tool paths. The software can convert 3D models into machines for accurate production. It visualizes the process and optimizes cuts.
CNC software features simulation options that help to identify and correct potential errors. Error reduction reduces material waste and improves efficiency. Common Software Mastercam is strategic software with advanced manufacturing and computer-aided design features suitable for multi-axis machining and complex milling.
Fusion 360 is a cloud-based software with CAM, CAD, and CAE (Computer-Aided Engineering) properties for prototyping. Above all, G-code is the most popular programming language for CNC machines for accurate tool, speed, and control.
Each software has unique pros and cons for generating precise cutting tool paths. By stimulating accurate machining procedures, G-code also improves production efficiency and reduces errors. The software is a critical difference in the CNC turning vs. Milling: comprehensive guide.
Generally, CNC software bridges the design to accurate manufacturing. Hence, it enables machinists and engineers to craft CAD models into programming instructions. The programming models ensure the final part features the exact specifications. Most importantly, it stimulates cutting, optimizes parameters, and calculates the tool path.
The software detects material waste, collisions, and other potential challenges. Hence, the step streamlines manufacturing, enables repeatability, improves precision, and reduces manual intervention. Effective software delivers lower costs, reduced production times, and high-quality parts in CNC machining.
The appropriate cutting tools for CNC machining are critical based on the desired product and material. Hence, you can optimize spindle speed and feed rates based on the tool efficiency and material properties. You must minimize unnecessary tool movements, use software to prevent errors, and verify the cutting path.
Most importantly, adjust your program aptly and consider tool deflection in deep cuts. You can also use canned cycles to complete repetitive tasks to reduce mill machine runtime. Above all, organize and troubleshoot your programs regularly.
Limiting positioning and tool changes can boost efficiency by reducing downtime. In addition, higher feed rates and cutting speeds can balance durability with productivity. Another great option is to install multi-axis operations to reduce manual repositioning.
Besides, you can reduce regular tool swaps by grouping similar projects. Software simulations can help to predict and implement effective cutting tool paths for production. Above all, idle times and non-cutting movements can be avoided through advanced techs such as adaptive tool paths and high-speed machining.
Typical mistakes include wrong tools, which result in suboptimal material removal and tool breakage. Meanwhile, incorrect spindle speeds and feed rates can result in excessive tool wear. Another mistake is ignoring regular calibration, which leads to inaccurate shapes. Production defects may also result from inadequate service.
In any case, failing to use simulation programs can result in more errors and collisions. G-code input errors and incorrect programming can also result in costly production. Thus, preventive measures and regular inspections can help avoid mistakes.
Adhere to critical best practices to attain optimal results in CNC machining. These practices involve choosing the right tools and materials to achieve perfect precision through proper calibration and setup. Best practices are critical for ensuring reliable performance, maximizing efficiency, and minimizing errors.
The appropriate material depends on the use setting, tolerance, durability, and strength. Metals like titanium, steel, and aluminum provide fantastic strength. Polycarbonate, ABS, and plastics are lightweight and flexible. The materials also react differently to tools and cutting speed.
Softer materials require a lower speed to avoid damage, while more complex materials need specialized cutting tools. Besides, you must consider surface finish requirements, hardness, and conductivity when selecting the most compatible material for CNC.
Using the right tools can help you attain precision. For instance, ball nose mills suit 3D shapes, while end mills match pockets, slots, and flat surfaces. Meanwhile, the drill bit helps create holes. You must conduct regular tool servicing to remove chipping and dull edges that cause poor surface finishes.
To extend the tools' life, it would be best to service them by replacing worn-out parts, sharpening, and proper cleaning. Proper tool service can be a strategic trick for ensuring high-quality results, increasing productivity, and reducing errors.
Proper calibration and setup are vital for accuracy since they help avoid movement during the CNC machining. Tools must be aligned well with perfect measurements to attain correct positioning. The calibration must check the spindle alignment and verify the machine's zero point.
The control system must ensure accurate tool offset with regular calibration to attain precision over time since misalignments translate to errors. Thus, auto-probing systems can facilitate repeatability and achieve high volume.
CNC turning vs. Milling: comprehensive guide covers critical techs in modern manufacturing because they offer efficiency, versatility, and precision for diverse uses. CNC milling provides flexibility for intricate designs and complex geometries, while CNC turning delivers results in symmetrical parts and cylindrical products.
The two methods can enable swift repeatability, enhance production speed, and minimize human error. To attain strategic prototyping investment, you must understand the limitations and benefits of each procedure.
