Commonly Used Materials in Rapid Prototyping

Rapid prototyping has become an essential tool in product development, enabling designers and engineers to transform digital concepts into tangible models swiftly. The success of rapid prototyping hinges significantly on the selection of appropriate materials, each offering distinct properties that cater to various prototyping needs. This article delves into the most commonly used materials in rapid prototyping, highlighting their characteristics, applications, and considerations for selection.

1. Thermoplastics

Thermoplastics, such as ABS (Acrylonitrile Butadiene Styrene), PLA (Polylactic Acid), and Nylon, are among the most widely used materials in rapid prototyping. These materials are favored for their durability, flexibility, and ease of processing. They are particularly suitable for creating prototypes that require a combination of strength and heat resistance. Their versatility allows for applications ranging from consumer products to automotive components.

2. Photopolymers

Photopolymers are crucial in technologies like Stereolithography (SLA) and Digital Light Processing (DLP). These materials are cured by light exposure, resulting in high-resolution prints that capture intricate details. Photopolymers are ideal for producing visually appealing prototypes, making them popular in industries such as jewelry design and dental prosthetics, where precision is paramount.

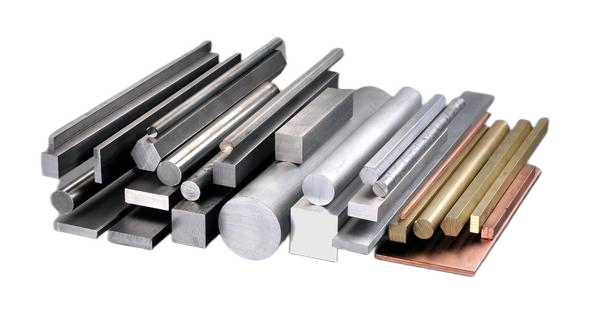

3. Metals

Metals such as aluminum, stainless steel, and titanium are increasingly used in metal additive manufacturing processes. These materials provide exceptional strength and durability, making them suitable for functional prototypes that must endure rigorous testing. Industries such as aerospace and automotive rely on metal prototypes to assess performance and manufacturability.

4. Composites

Composites, which combine two or more materials, offer a unique blend of properties, including strength, lightness, and flexibility. Fiber-reinforced composites, such as carbon fiber and fiberglass, are particularly valued in applications requiring enhanced structural integrity. These materials are commonly used in aerospace, automotive, and sporting goods industries.

5. Ceramics

Ceramics are known for their high-temperature resistance and excellent electrical insulation properties. They are often used in applications requiring thermal stability and electrical insulation, such as in the production of prototypes for electronic components and heat-resistant parts.

6. Wax

Wax materials are primarily utilized in investment casting processes, allowing for the creation of intricate prototypes. These materials are commonly used in industries such as jewelry design and dental applications, where detail and precision are critical.

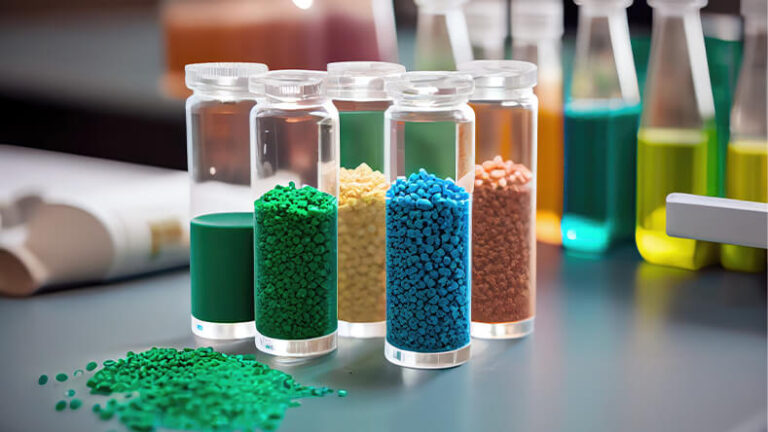

7. Biocompatible Materials

In the medical and healthcare sectors, biocompatible materials, including specialized polymers and resins, are essential for developing medical devices and implants. These materials ensure safety and compatibility with the human body, making them crucial for prototypes intended for medical applications.

8. Elastomers

Elastomeric materials provide flexibility and elasticity, making them ideal for prototypes requiring gaskets, seals, and flexible components. Their applications span various industries, including automotive and consumer goods, where durable, flexible prototypes are needed.

Considerations in Material Selection

When selecting materials for rapid prototyping, several factors must be considered:

· Mechanical Properties: Assessing strength, flexibility, and durability is crucial for ensuring the prototype meets functional requirements.

· Surface Finish: The desired aesthetic and functional characteristics of the prototype can be influenced by the material's surface finish. High-quality finishes may be necessary for visual prototypes, while functional prototypes may prioritize durability.

· Heat Resistance: Depending on the application, materials must withstand varying temperatures without deforming or losing integrity.

· Cost: Budget constraints often dictate material selection. While high-performance materials may offer superior properties, they can also be significantly more expensive.

· Intended Use: Understanding the prototype's purpose—whether for functional testing, visual evaluation, or both—guides material choice. Prototypes intended for functional testing should closely resemble the end product's properties.

Conclusion

The diverse range of materials available for rapid prototyping allows for tailored solutions that meet the specific needs of various industries. Each material brings unique advantages, contributing to the versatility and efficacy of rapid prototyping processes. By carefully considering the properties and applications of these materials, designers, and engineers can create effective prototypes that facilitate innovation and accelerate product development.

Incorporating the right materials in rapid prototyping not only enhances the quality of prototypes but also streamlines the design process, ultimately leading to faster time-to-market and improved product outcomes. As technology continues to evolve, the selection of materials will play a pivotal role in shaping the future of rapid prototyping.
