Ever had a CNC-machined part come back over budget, delayed, or just plain wrong? It’s a designer’s nightmare—one that Design for Manufacturability (DFM) can prevent. When it comes to CNC machining, DFM is your blueprint for creating parts that are easier, faster, and cheaper to produce without sacrificing quality. By thinking like a machinist from the start, you can dodge costly redesigns and get your project right the first time.
This guide dives deep into DFM guidelines for CNC machining, offering practical tips to optimize your designs for milling, turning, or multi-axis machines. Whether you’re an engineer crafting precision aerospace components or a manufacturer streamlining production, these strategies will save you time, money, and headaches. From tolerances to material choices, let’s explore how to make your parts production-ready.

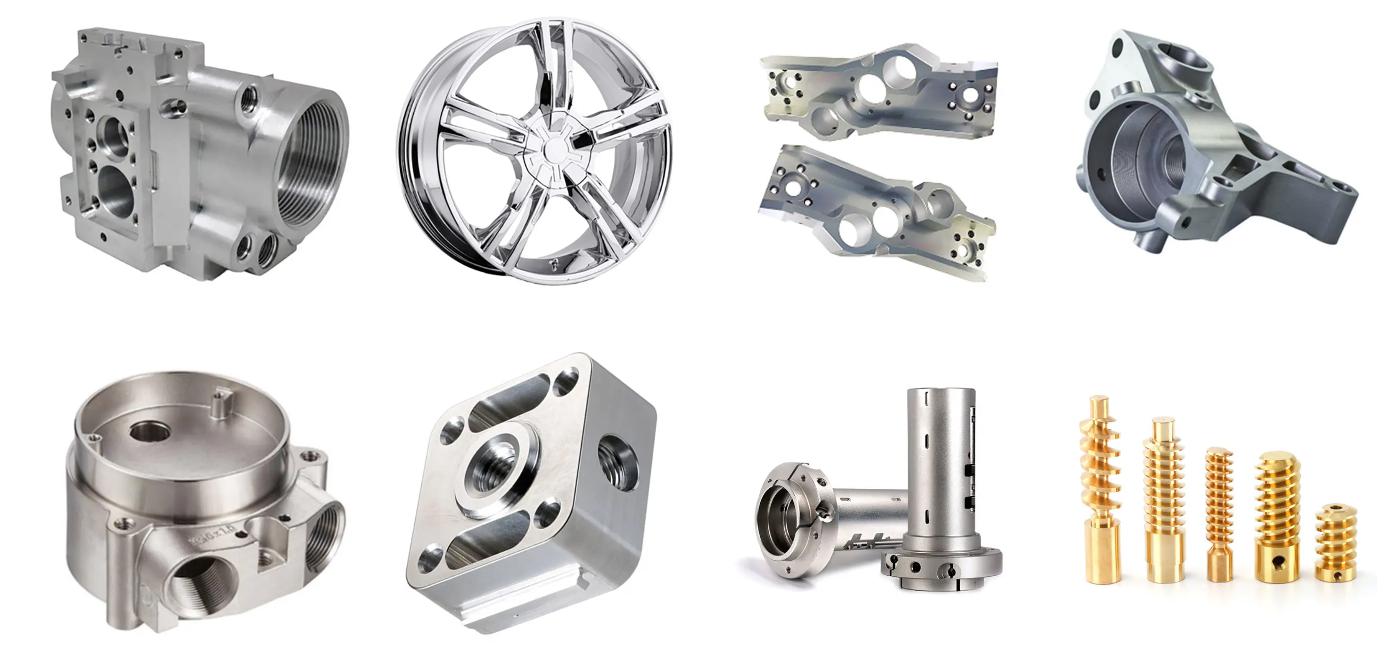

Design for Manufacturability (DFM) is the art of designing parts to be as easy and cost-effective to manufacture as possible while meeting all functional requirements. In the context of CNC machining—where computer-controlled tools carve metal, plastic, or composites into precise shapes—DFM means tailoring your design to the realities of mills, lathes, and multi-axis systems.
Without DFM, you risk:
Skyrocketing Costs: Overly complex designs drive up machining time and tool wear.
Production Delays: Features that are tough to machine slow down workflows.
Quality Issues: Poorly designed parts may fail tolerances or inspections.
By applying design for CNC machining principles, you align your vision with what’s practical on the shop floor. The result? Parts that hit specs, stay on budget, and reach you faster. Think of DFM as packing a suitcase efficiently—you fit more in with less hassle when you plan smart.
Ready to design smarter? These CNC machining DFM tips will help you create parts that machinists love and budgets thank you for. Let’s break them down:
Guideline: Stick to standard tolerances (e.g., ±0.005" or ±0.125 mm) unless tighter specs are critical.
Why It Helps: Tight tolerances—like ±0.001"—require slower machining, specialized tools, and extra inspections, jacking up costs.
Tip: Reference ISO 2768 for general tolerances to balance precision and affordability.
Example: A mounting plate with ±0.005" holes works fine for most assemblies—don’t spec ±0.001" unless it’s a high-precision fit.
Guideline: Avoid sharp internal corners and complex contours where possible; use fillets or radii (e.g., 0.5 mm or larger).
Why It Helps: CNC tools (like end mills) are round, so sharp corners demand slower, trickier processes like EDM, inflating costs.
Tip: Design pockets with a corner radius at least 1/3 the depth (e.g., 3 mm radius for a 9 mm deep pocket).
Example: A gearbox housing with radiused corners machines 20% faster than one with square edges.
Guideline: Select materials that match your needs and machine well, like 6061 aluminum for lightweight parts or 304 stainless steel for durability.
Why It Helps: Hard materials (e.g., titanium) wear tools faster, while soft ones (e.g., brass) cut smoothly, saving time.
Tip: Check material machinability ratings—aluminum 6061 scores high, while Inconel is tougher.
Example: Opt for aluminum over titanium for a non-critical prototype to cut costs by up to 30%.
Guideline: Design parts to be machined in as few setups as possible, ideally one.
Why It Helps: Each setup—flipping or repositioning the part—adds time, labor, and risk of misalignment.
Tip: Orient features to be accessible from one or two sides; leverage 5-axis machining for complex parts if available.
Example: A bracket with all holes on one face machines in one go, unlike a multi-sided design needing three setups.
Guideline: Keep walls thicker than 0.8 mm (0.03") and cavities shallower than 4x the tool diameter (e.g., 40 mm for a 10 mm tool).
Why It Helps: Thin walls vibrate, risking breakage, while deep cavities slow machining and may need specialized tools.
Tip: Reinforce thin sections with ribs or increase thickness if strength allows.
Example: A 0.5 mm wall warped during milling; bumping it to 1 mm ensured stability.
Guideline: Use common hole sizes (e.g., metric M3, M4 threads) and standard thread depths (1.5x diameter).
Why It Helps: Standard features reduce tool changes and stock custom tooling costs.
Tip: Stick to ANSI or ISO thread standards for universal compatibility.
Example: Using M6 threads instead of a custom 5.5 mm tap saved $200 in tooling on a batch of 100 parts.
These guidelines make your designs leaner and meaner, ensuring CNC part optimization for efficiency and quality.
Even seasoned designers slip up. Here are pitfalls to dodge when applying design for CNC machining:
Overly Tight Tolerances: Specifying ±0.001" for a non-critical surface can double machining costs. Solution: Reserve tight tolerances for mating surfaces only.
Sharp Internal Corners: These force machinists to use slow, costly methods. Solution: Add a 0.5–1 mm radius to corners.
Unsupported Overhangs: Features like thin, protruding fins can bend or break. Solution: Add supports or redesign for stability.
Ignoring Material Properties: Choosing a material like titanium for a simple bracket spikes costs. Solution: Match material to function (e.g., aluminum for lightweight needs).
Complex Multi-Sided Designs: Parts needing multiple flips increase setup time. Solution: Consolidate features to one or two faces.
Real-World Impact: A client once designed a part with 0.3 mm walls and ±0.0005" tolerances—machining failed three times, costing $5,000 in rework. A DFM review thickened walls to 1 mm and loosened tolerances, slashing costs by 40%.
Avoiding these errors ensures cost-effective CNC design and keeps your project on track.
Why bother with DFM? The payoffs are huge:
Cost Savings: Simplified designs cut machining time and tool wear. Example: A DFM-optimized aerospace bracket saved 30% by reducing setups.
Faster Production: Fewer setups and standard features speed up delivery—sometimes by days.
Higher Quality: Designs that respect machining limits pass inspections with fewer rejects.
Better Collaboration: DFM aligns designers and machinists, reducing back-and-forth.
In short, CNC machining DFM tips turn good ideas into great parts, maximizing value without compromising performance.
Want a quick way to nail DFM? Use this checklist before sending your design to the shop:
Tolerances: Are they standard (±0.005" or ±0.125 mm) for non-critical features?
Corners: Do internal corners have radii (e.g., ≥0.5 mm) for easier machining?
Materials: Is the material machinable and cost-appropriate (e.g., aluminum vs. titanium)?
Setups: Can the part be machined in one or two setups?
Walls/Cavities: Are walls ≥0.8 mm and cavities ≤4x tool diameter?
Features: Are holes and threads standard (e.g., M4, M6, ANSI/ISO)?
Review: Have you shared the design with your machinist for feedback?
Pro Tip: Early collaboration with your CNC shop—like BOEN Rapid’s team—catches issues before they cost you. A quick DFM review can save thousands in rework.
DFM isn’t static—it’s evolving with technology:
AI-Driven Tools: Software like Autodesk’s Fusion 360 now flags DFM issues in real-time, suggesting fixes like larger radii or fewer setups.
Automated Analysis: Machine learning predicts machining challenges, cutting design errors by up to 20%.
Digital Twins: Virtual models simulate machining, letting designers test DFM before cutting metal.
These advances make best practices for CNC design more accessible, helping even small teams create production-ready parts with ease.
Mastering DFM guidelines for CNC machining is like unlocking a cheat code for manufacturing. By optimizing tolerances, simplifying geometries, choosing smart materials, and standardizing features, you’ll slash costs, speed up production, and boost quality. Avoid common traps—like tight tolerances or thin walls—and use our checklist to keep your designs sharp.
Ready to take your CNC project to the next level? Partner with experts like BOEN Rapid, where over 20 years of machining experience ensures your designs hit the mark. Drop us a line at contact@boenrapid.com to refine your parts for peak performance. Design smarter today, and watch your ideas come to life without the hassle.
